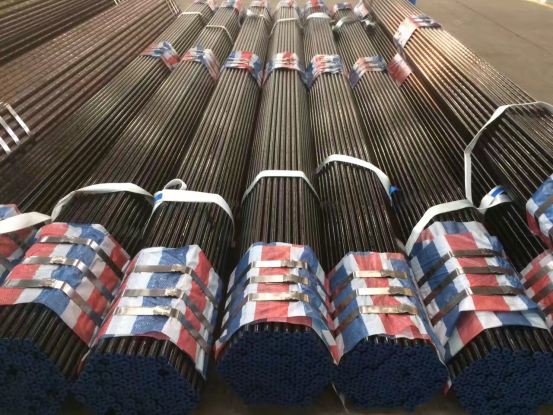

Name:ASTM A192 SEAMLESS TUBE
Number:ASME SA192 /ASTM A192
Time:2017-05-18
Product introduction
STANDARD: ASTM A192/A192M-02 |
Seamless Carbon Steel Bolier Tubes for High-Pressure |
Application: |
For seamless carbon steel bolier and superheater tubes for high-pressure service |
Size(mm): |
O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |
Grade and Chemical Composition (%)
Chemical Composition
|
C |
Mn |
P≤ |
S≤ |
Si≤ |
0.06-0.18 |
0.27-0.63 |
0.035 |
0.035 |
0.25 |
OD&WT Tolerance(SA-450/SA-450M):
OD In (mm) |
+ |
- |
WT In(mm) |
+ |
- |
<1(25.4) |
0.10 |
0.10 |
≤1.1/2(38.1) |
20% |
0 |
1~1.1/2(25.4~38.1) |
0.15 |
0.15 |
>1.1/2(38.1) |
22% |
0 |
>1.1/2~<2(38.1~50.8) |
0.20 |
0.20 |
|
|
|
2~<2.1/2(50.8~63.5) |
0.25 |
0.25 |
|
|
|
2.1/2~<3(63.5~76.2) |
0.30 |
0.30 |
|
|
|
3~4(76.2~101.6) |
0.38 |
0.38 |
|
|
|
>4~7.1/2(101.6~190.5) |
0.38 |
0.64 |
|
|
|
>7.1/2~9(190.5~228.6) |
0.38 |
1.14 |
|
|
|
硬度要求:
布氏硬度值 Brinell Hardness Number
壁厚大于等于(WT≥)0.200In(5.1mm) |
洛氏硬度值 Rockwell Hardness Number
壁厚大于等于(WT》)0.200In(5.1mm) |
137HRB |
77HRB |
