The working principle is allowing the certain size sand coming through the surface with crude oil but keeping the bigger size sand being stopper outside to form sand bridgeand thereby achieving the anti-sand purpose.
This type of product is commonly used to sand rock and carbonate reservoirand especially useable for horizontal wells.
Trapezidal design
Reduce the rate of erosion of sewing caused by system, improve self-cleaning, maintain the slot cavity open, and improve the recovery efficiency.
Groove Structure Length(mm):0.20-1.20

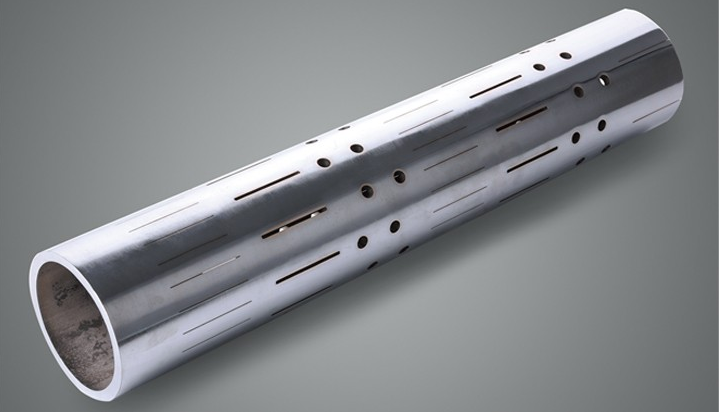

Longitude slot design (rectangular slot)
Reduce friction of fluid entrance, open area of the fluid and processing are easily control. This design is mainly for thick reservoirs, similar pressure and other physical reservoirs and also loose sand reservoirs with medium coarse particles.
Composite slot design
Take the rate of crude oil seepage flow, flow resistance and lifetime into account, a combination of various slot. This slot is particularly design for complex reservoirs with different pressures. But the manufacture technology of composite slot is complicated and difficult
Quick Details
· Standard: API, API 5CT· Grade: API J55-API P110, API J55, API K55, API L80, API N80, API P110, H-40;J-55;K-55;M-65;L-80;C-95;N-80 Type1,Q;C-90;T95;P-110
· Thickness: 4.5 - 20 inch
· Section Shape: Round/Square
· Place of Origin: Jiangsu, China (Mainland), Jiangsu,China(Mainland)
· Secondary Or Not: Non-secondary
· Application: Oil Pipe
· Technique: Hot Rolled, Cold/Hot Rolled
· Certification: API
· Surface Treatment: Other
· Special Pipe: API Pipe
· Alloy Or Not: Is Alloy
· Product name: 9 5/8 Water Well Oilfield Steel Casing Pipe Drilling Prices
· W.T.: 5.21-22.22mm
· Nominal weight: 9.5-133.0(Ib/ft)
· Material: Alloy steel
· Length: 1-12m
· O.D.: 114.3-508.0mm
· Size: 4-1/2" - 20"

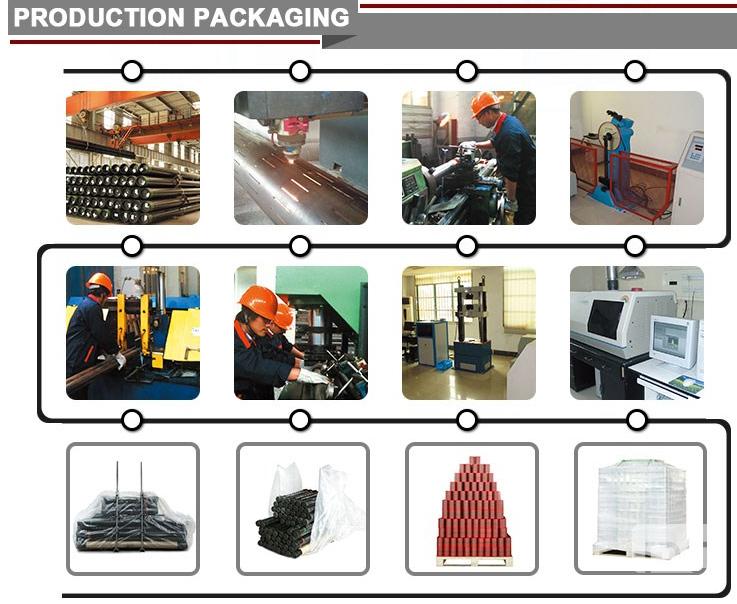

Packaging & Delivery
| Packaging Details: | Bundles, seaworthy wooden cases; With or without end caps, varnish or as per clients requirements for 9 5/8 Water Well Oilfield Steel Casing Pipe Drilling Prices |
| Delivery Detail: | according to the quantity of per size |
Quick Details
· Standard: API, API 5CT, API,API 5CT· Grade: API J55-API P110, API J55, API L80, API N80, API P110, J-55,L-80,N-80,C-90,T-95,P-110
· Thickness: 4.24 - 16 mm, 4.24-16mm
· Section Shape: Round
· Outer Diameter: 60.32 - 114.3 mm, 60.32-114.3mm
· Place of Origin: Hebei&Jiangsu, China (Mainland),Tianjin, China (Mainland)
· Secondary Or Not: Non-secondary
· Application: Oil Pipe
· Technique: Hot Rolled
· Certification: API
· Surface Treatment: Other
· Special Pipe: API Pipe
· Alloy Or Not: Is Alloy
· Product name: API 5CT N80Q Pipes Steel Coiled Tubing Tubes Price Specification
· Length: R1,R2
· O.D.: 2 3/8",2 7/8",3 1/2",4",4 1/2"
· W.T.: 0.169-0.630
· Type: NUE, EUE
· Usage: oil casing and tubing
Packaging & Delivery
| Packaging Details: | Bundles, seaworthy wooden cases; With or without end caps, varnish or as per clients requirements for API 5CT N80Q Pipes Steel Coiled Tubing Tubes Price Specification |
| Delivery Detail: | 30-45 days after got the advance payment |
Quick Details
· Material: Alloy· Technics: hot/cold rolled
· Type: Coupling, coupling coupling
· Place of Origin: Jiangsu, China (Mainland), Jiangsu,China(Mainland)
· Model Number: tubing coupling
· Brand Name: Eastsun
· Connection: NUE,EUE
· Shape: Equal, Tubular
· Head Code: Other
· Product name: Cheap Hot Sale Universal Flexible Coupling
· Size: 2-3/8"--4-1/2"
· Grade: J55/K55/N80/L80/P110
· Machine Type: Drilling Tool
· Certification: API
· Thread type: NUE,EUE
· Metal: Alloy
Packaging & Delivery
| Packaging Details: | Bundles, seaworthy wooden cases; With or without end caps, varnish or as per clients requirements for Cheap Hot Sale Universal Flexible Coupling |
| Delivery Detail: | according to the quantity of per size |
Couplings are short length of heavy wall pipe with the same threads on each end.
manufactures coupling and casing coupling strictly comply with API 5CT latest standard.
